Specification for Q9 | ||
| Catagory | Item | Specification |
| Display | Light source | LED |
| LCD panel | 3 inch | |
| Light source life | 30000 hours | |
| Lens | Glass lens | |
| Light engine | Sealed dust free | |
| Native resolution | 1920*1080 pixels | |
| Brightness | 300 ANSI lumens | |
| Focus mode | Auto focus | |
| Keystone correction | Auto vertical keystone correction/4D keystone correction | |
| Auto obstacle avoidance | Automatically avoid obstacle during calibration | |
| Auto screen alignment | Automatically enter the screen curtain | |
| Zoom | Digital zoom | |

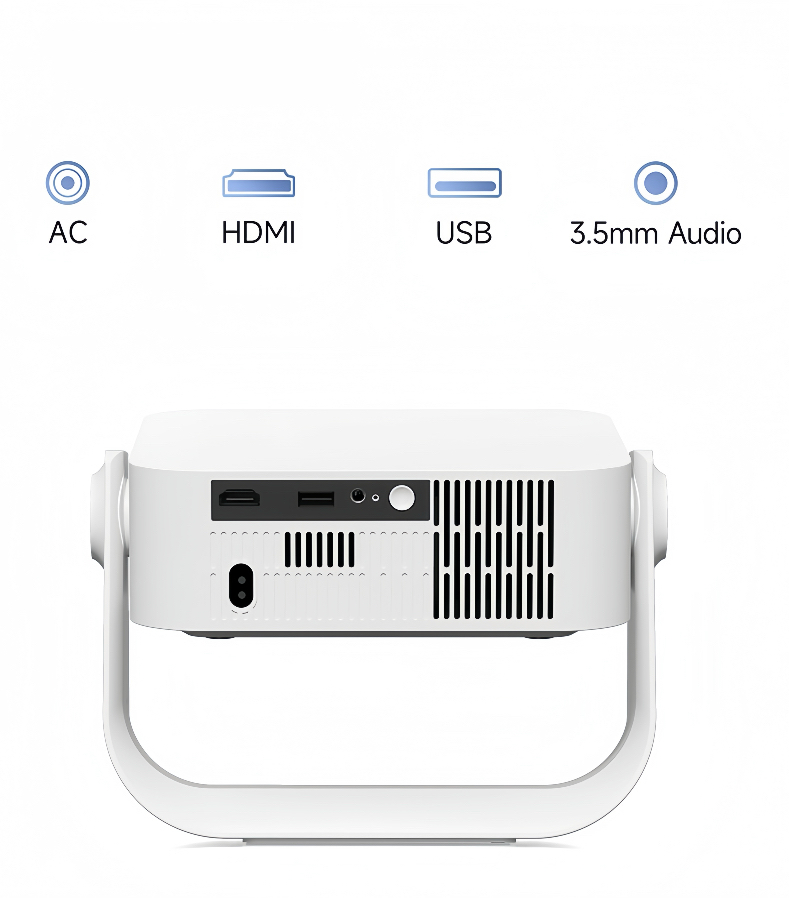

| Interface | USB*1/HDMI *1/3.5mm audio output | |
| Working Noise | <36 db/m | |
| Working temperature | 0℃-40℃ | |
| Projection Images | Aspect ratio | 16:9, 4:3 and Auto-fit |
| Throw ratio | 1.2:1 | |
| Projection distance | 0.9-5 meters | |
| Projection screen size | 31-250 inches | |
| Audio | Built-in speaker | 3W*1 |
| Audio output | 3.5mm Stereo Jack | |
| Bluetooth | BT5.1 | |
| Software solution | CPU | Hi352 chipset, support 4K decoding |
| RAM+ROM | 1+8G | |
| Wifi | Wi-Fi 6 + Dual Band Wi Fi (2.4 Ghz + 5 Ghz) | |
| Android 12.0 AOSP | Connect to phone or PC via HDMI; Connect to TV box or TV stick ; Play video by USB flash disk; Connect with 2.4G/5G Wi-Fi; Mirror screening; Buit-in apps and Chromebrowser. | |
| Mechanical design | Projector color | White |
| Projector mount | UN1/4 | |
| Projector bracket | With freestyle bracket | |
| Power | Power input | 100~240V-50/60Hz |
| Power consumption | 49W | |
| Battery for remote | AAA battery *2 (Not included) | |
| Accessories | AC power cords | 1 |
| Manual book | 1 | |
| Bluetooth remote | 1 | |
| Colorful packaging box | 1 | |
| Packing information | Quantity per carton | 8 pieces |
| unit size | 220*70*240cm | |
| packaging size | 277*272*132cm | |
| Nett weight/unit | 1.4KG | |
| Gross weight/unit | 1.85KG | |
